Oil press machine
Sunflower oil press machine with filter
- Product name: Sunflower oil press machine with filter
- Company type: Manufacturer, supplier & exporter
- Replytime: Within 24 hours
- Whatsapp/Mobile: 0086 13526627860
- Email: sales@doingoilmachine.com

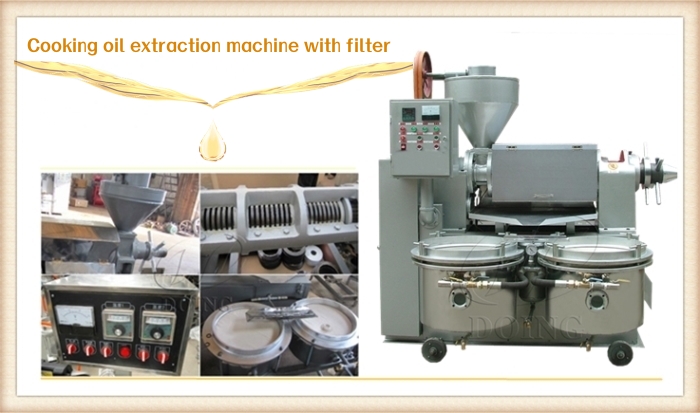

Integrated sunflower oil press machine with filter is a kind of superior oil pressing machine nowadays in the market. Integrated sunflower oil press machine is used for processing cooking oil from various oil bearing materials such as peanuts, soybeans, sunflower seeds, rapeseeds, sesame seeds and so on.
Besides, the integrated screw oil press is suitable for both cold and hot pressing. Compared with screw oil press machine, the integrated sunflower oil press machine adds automatic heating device and control system, and filtering equipment, which can achieve the dual purpose of extracting oil and filtering oil.

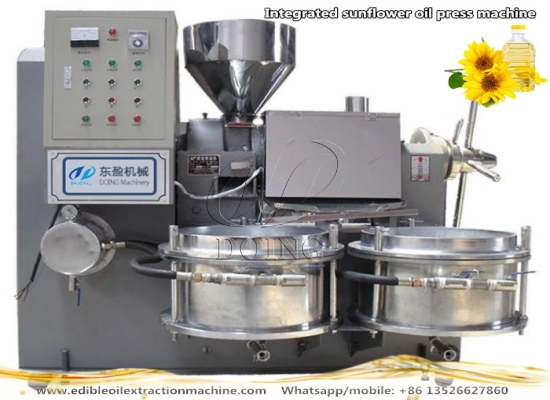

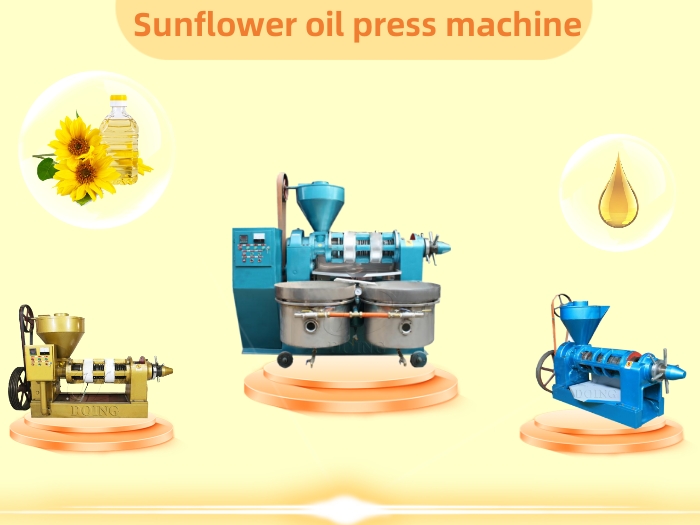

Sunflower oil press machine
The integrated sunflower oil press machine with filter has the advantage of higher efficiency, lower consumption, simple operating, stable function, easy maintenance, high productivity and high oil output. The integrated sunflower oil press machine with filter mainly consists of three parts as following: Screw oil press, heating element,vacuum filtering system, Therefore, such integrated oil press machine could supply better quality edible oil for consumption. Also one PLC display has been installed for controlling feeding, oil flowing speed, chamber heating etc. So manpower can be saved and work efficiency can be improved as well.

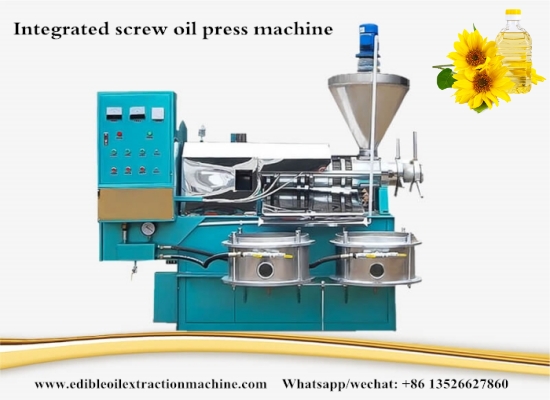

Small scale integrated screw sunflower oil press machine
Some requirements of different oilseeds before pressing
| Raw material | Output Rate(%) | Thickness of Oil Cakes (mm) | Oil Content of Dry Cakes (%) |
| Canola | 30-38 | 1-1.5 | ≤7.5-8 |
| Cotton seed | 12-14 | 1-2 | ≤6.5-7.5 |
| Soybean | 10-16 | 2-2.5 | ≤6.5-7 |
| Peanut seeds | 35-45 | 1-2 | ≤7 |
| Sesame | 42-47 | 2-2.5 | ≤6.5-7.5 |
Main Specifications of integrated sunfloweroil press machine:
| Model | Input Capacity(kg/h) | Power(kw) |
Speed of screw worm(r/min) | Weight（kg) |
Dimension L*W*H (mm) |
| DY-68A | 40-60 | 5.5+1.5 | 137-160 | 450 | 1780×700×1320 |
| DY-80A | 80-100 | 5.5+1.5 | 80-100 | 700 |
1480×630×1570 1060×575×620 |
| DY-95A | 150-180 | 7.5+1.5 | 33-39 | 950 |
2100×970×1970 1180×650×580 |
| DY-100A | 150-180 | 7.5+1.5 | 36-39 | 1000 |
2250×890×1820 1230×640×570 |
| DY-105A | 160-200 | 11+1.5 | 33-39 | 1200 |
2260×950×1800 1310×730×580 |
| DY-120A | 200-250 | 15+1.5 | 32-39 | 1300 |
2280×890×1770 1350×700×570 |
| DY-130A | 250-300 | 18.5+1.5 | 32-36 | 1500 |
2350×840×1850 1350×700×570 |
Why integrated screw sunflower oil press machine become increasingly popular around the world?
Firstly, it can process a very wide range of oil-bearing plants, including peanut, almond nut, prickly pear seed, mustard seed, sunflower seed and more. So wherever you are, buying an integrated screw sunflower oil press machine can start cooking oil making business.
Secondly, the oil extracted by integrated screw sunflower oil press is of good quality and good color, which has great advantages in the market, so the final sunflower oil price will be high.
Thirdly, the integrated scrw sunflower oil press machine don't need too much investment cost, so many investors can affordable it.
How to use integrated screw sunflower oil press machine make cooking oil?

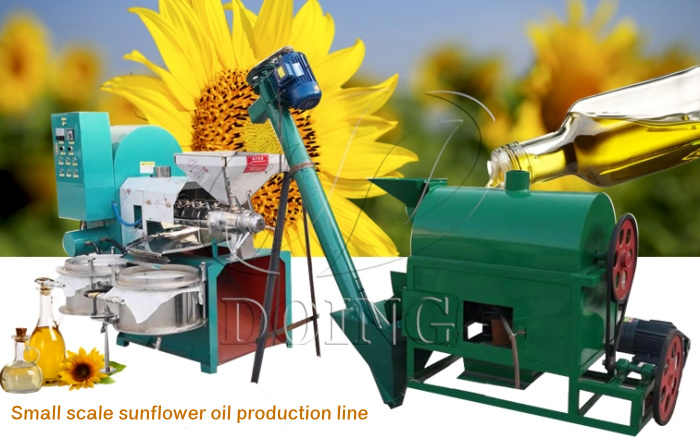

Our integrated screw sunflower oil pres machine usually used with small cooker
To get high quality edible oils, the raw materials should be properly pretreated before starting oil extracting. Normally, we will use cleaning machine to remove metals, small stones , and other impurities. Then we need to use cooker machine to adjust the temperature and moisture of sunflower seeds. Cooking is to better pretreat the raw materials for highest oil yield when pressing. Then the prepared sunflower seeds will come to the integrated oil press machine to press oil out from the pretreated materials. This is just the small scale sunflower oil production process, for reference only. Of course, the production process of large scale sunflower seeds is different, if you need, welcome to contact Henan Doing Company, our engineers will customized suitable sunflower oil solutions for you.
Each process requires specific processing equipment to complete. Henan Doing Machinery is the reliable supplier of sunflower oil processing machine, we can supply whole set sunflower oil making machine accordong to the customer's requirements. If you are interested in cooking oil processing business and want to learn detailed equipment and specifications, please contact us at any time.
