Oil press machine
Automatic hydraulic oil press machine
- Product name: Automatic hydraulic oil press machine
- Company type: Manufacturer, supplier & exporter
- Replytime: Within 24 hours
- Whatsapp/Mobile: 0086 13526627860
- Email: sales@doingoilmachine.com
The introduction of automatic hydraulic oil press machine
Automatic hydraulic oil press machine is a kind of small scale oil press machine, usually used at home or mini oil mill. The automatic hydraulic oil press machine is especially suitable for pressing sesame oil, rapeseed oil, peanut oil and other kinds of vegetable oil.
The main structure of automatic hydraulic oil press machine:

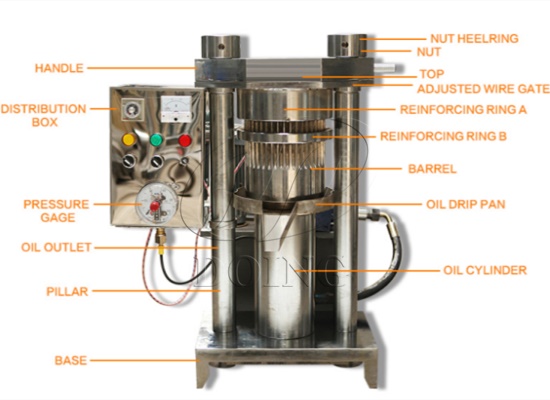

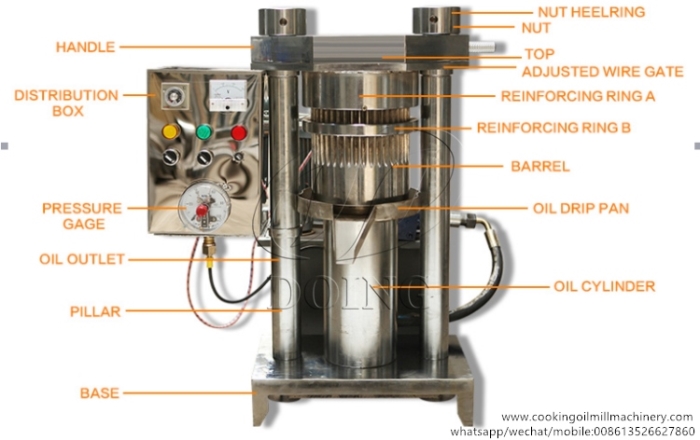

The structure of automatic hydraulic oil press machine
The main parts of automatic hydraulic oil press machine are piston, hydraulic cylinder, column, movable upper beam, base, oil pump, barrel, electric heating ring and automatic temperature control device. The materials all made of high-quality metal materials, can improve the performance of the machine and ensuring the service life of the components.
The technical parameters of automatic hydraulic oil press machine:
| Model | Input capacity(kg/h) | Overall dimensions(mm) Height*Width*Depth | Weight(kg) | Package dimension(mm) Height*Width*Depth | Package Weight(kg) | Power(kw) |
| 180 | 25-30 | 750*750*1100 | 510 | 800*800*1200 | 550 | 1.1 |
| 230 | 50-60 | 850*850*1450 | 840 | 900*900*1550 | 900 | 1.5 |
| 280 | 100-120 | 1000*1100*1550 | 1400 | 1050*1150*1650 | 1500 | 2.2 |
The advantages of automatic hydraulic oil press machine:
1. High oil yield rate: Compared with the traditional equipment, the oil yield rate can increase 2 to 3 percentage points. For example, processing 100 kg of peanuts can get 2-6 kg more peanut oil on average.
2. Energy saving: The electric power can be reduced by 40% for the same output.
3. Easy operation: Mechatronic design, low failure rate, high degree of automation, beautiful appearance, simple operation. It can be completed within 8 minutes from filling the oil seeds to getting the oil seeds cake.

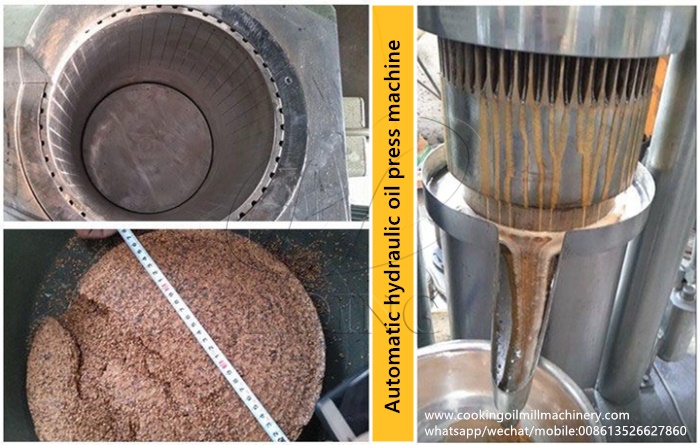

The oil seed cake got from the hydraulic oil press machine
4. Labor saving: One person can operate multiple automatic hydraulic oil press machine at the same time.
5. Widely used: The automatic hydraulic oil press machine can squeeze peanuts, flax, sesame, rapeseed, sunflower seed, cottonseed, soybean, etc. more than 30 kinds of oil seeds.
6. Small footprint: 10-20 square meters is enough.
If you need, please leave a message in bellow table.
