Small scale palm oil press machine

Date:Mar 18, 2021/ Oil press machine/ Leave a message
  • Product name: Small scale palm oil press machine
  • Company type: Manufacturer, supplier & exporter
  • Replytime: Within 24 hours
  • Whatsapp/Mobile: 0086 13526627860
  • Email: sales@doingoilmachine.com

1.The introduction of small scale palm oil press machine

DOING Brand small scale palm oil press machine is a type of machine for pressing palm fruits so as to get palm oil, which is suitable for small scale palm oil mill plants or the home use workshops, and its largest processing capacity is 500 kg/h.

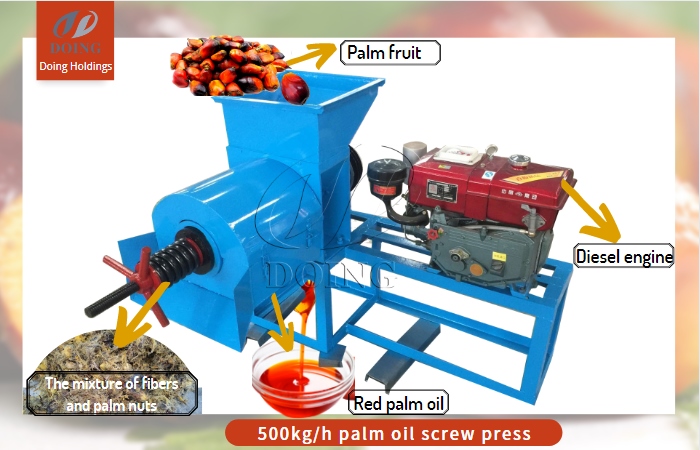

palm oil press machineSmall scale palm oil press machine

2.The structure of small scale palm oil press machine

The small scale palm oil press machine mainly has these parts: single press screw, press chamber, hopper, motor, and the whole machine frame.

3.The working principle of small scale palm oil press machine

Generally speaking, this palm oil press machine can squeeze the palm oil out from palm fruits. Due to the press of the small scale in the press chamber, the space of the press chamber gets smaller and smaller, so as to ceaselessly press the palm fruits to get palm oil, while keep the completeness of palm nuts. Meanwhile, the oil flows from the below, and the mixture of palm nuts and fiber is removed from the outlet.

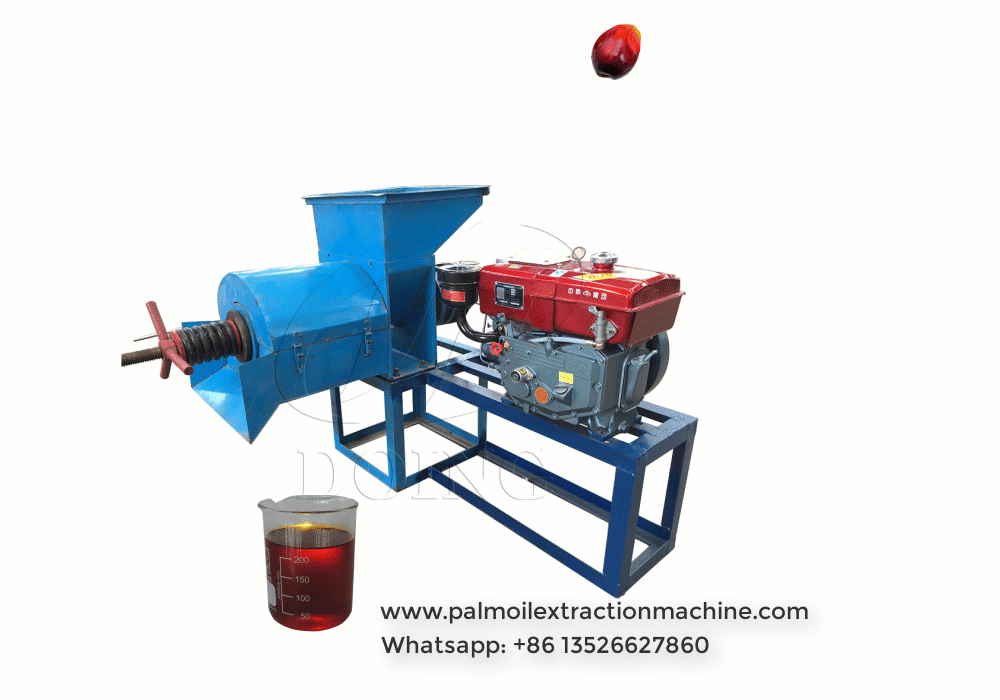

palm oil press machineSmall scale palm oil press machine gif

4.Operating process of small scale palm oil press machine

Before feed palm fruits into this small scale palm oil press machine, the palm fruits should be cooking first. After that, adjust the machine and prepare a container to hold palm oil. Then, when you start the machine, keep feeding palm fruits to the hopper and cleaning the mixture of palm nuts and fiber. Finally, clean the machine to maintain its service life, and you will get crude palm oil and the mixture of palm nuts and fiber.

5.Model and parameters of DOING small scale palm oil press machine

Capacity(kg/h) 300-500
Main Power(kw) Diesel:8HP

Moter:4Kw

Main Shaft Speed 25-35r/min
Boiling Time 2h
Weight(kg) 350
Packed Size(mm) 1500*800*1200

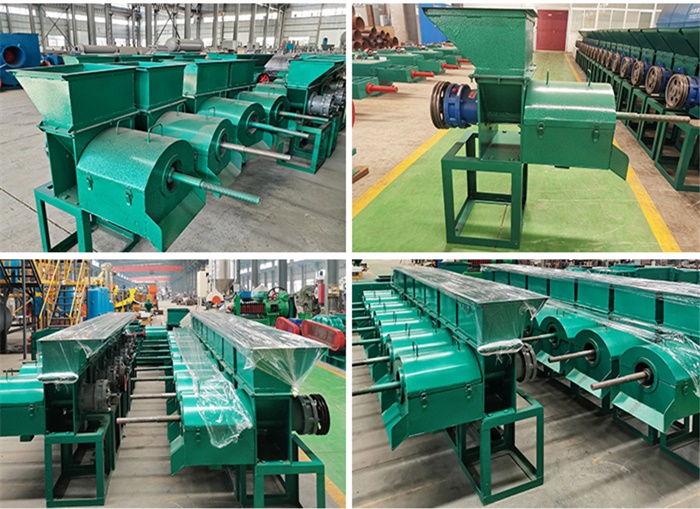

palm oil press machineSmall scale palm oil press machine in factory

6.The features of DOING small scale palm oil press machine

Optional motor: diesel motor and electric motor for you to choose according to your real conditions.

High oil output: more than 90% oil output.

Low palm kernel damage rate: the well-designed machine structure can help prevent the palm nuts from being damaged, while the palm fruits would be pressed as much as possible.

Easy operation: with our engineers’ technical support, you can quickly catch the operation skills. Normally, one person is enough to control this machine.

Easy to move: small scale machine for you to save place, which indirectly save cost.

Long service life: the screw is made of stainless steel, which is sturdy and durable.

Low cost: Henan Glory is a company devoted in equipment R&D, professional manufacturing and equipment sales service. Therefore, we can provide this small scale palm oil press machine with factory price.
