Double screw palm oil press machine

Date:Apr 29, 2022/ Oil press machine/ Leave a message
  • Product name: Double screw palm oil press machine
  • Company type: Manufacturer, supplier & exporter
  • Replytime: Within 24 hours
  • Whatsapp/Mobile: 0086 13526627860
  • Email: sales@doingoilmachine.com

Double screw palm oil press machine, which is the most important palm oil extraction machine in the whole palm oil extraction plant. Double screw palm oil press machine common capacity 1tph, 5tph, 10tph, 15tph etc. In addition, we can also customize your palm oil production plan according to your actual capacity.

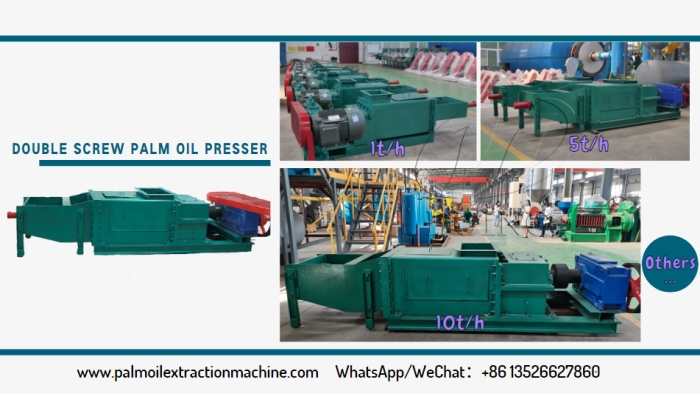

Double screw palm oil press machine photoDouble screw palm oil press machine photo

Parameters of our double screw palm oil press machine

Product name: 1tph double screw palm oil expeller Double screw palm oil expeller
Power: 7.5KW https://www.palmoilextractionmachine.com/uploads/allimg/201211/3-2012110929454Y.jpg
Screw diameter: 146mm
Screw distance: 127-135mm
Screw distance: 2500*1000*550mm
Reference Weight: 1800kg
Residual oil rate: 6%-8%
Nut breakage: 8%-10%
Power of hydraulic unit: 2.2KW

Advantages of double screw palm oil press machine

High production rate: The continuous double screw palm oil press machine and the hydraulic automatic control system for adjusting the pressure inside the press cage ensure high oil production rate and low breakage of palm nuts.

Energy saving: of equal output: double screw palm oil press machine can save 40% power than other types.

Continuous operation: The double screw palm oil press machine can work continuously, so it need little labor. The residue cake after oil extraction is small and thin. The double screw type palm oil press machine is popular and easy in application.

Working principle of double screw palm oil press machine



Double screw palm oil press machine is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Some palm oil cakes or meals have high nutritional and can be used as the diet animals. The process is not entirely the mechanical part, hydraulics also play a role in creating pressure in the pressure chamber so that the oil is squeezed out.

Importance of double screw palm oil press machine while setting up palm oil extraction plant

While setting up the palm oil extraction plant, double screw palm oil press machine is an important machine that determines other parameters such as production capacity, and the quality of produce among other business aspects of production. Henan Glory Company has the in-depth technical knowledge, modern technology, advanced skills, experienced professional and invested heavily in research and development of oil extraction machines.

As a result of many years of research, we have designed high-quality oil press machines. High attention has been focused on studying important parameters such as the worms design, cylindrical cage rotating and tapering of the screw. We have come up with a wide range of screw oil press that suits the various needs of the customers and capacity ranging from 500Kg/hour to several tonnes/hour.

Therefore, if you are interested in double screw palm oil press machine, please contact us at anytime, we will provide you with free quote. if you want to build a palm oil processing plant, we can also provide you with a range of complete equipment. Henan Glory Company welcome your consultation!
