Oil press machine
Single screw oil press machine
- Product name: Single screw oil press machine
- Company type: Manufacturer, supplier & exporter
- Replytime: Within 24 hours
- Whatsapp/Mobile: 0086 13526627860
- Email: sales@doingoilmachine.com

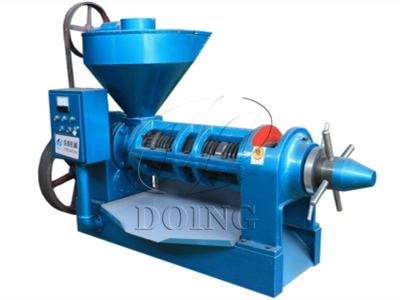

The introduction of single screw oil press machine
The YZYX series single screw oil press machine produced by Doing Company is suitable for small edible oil processing plant or small oil mill. This series of single screw oil press machine can be widely used for pressing soybean oil, peanut oil, rapeseed oil, sunflower oil, cottonseed oil and so on.

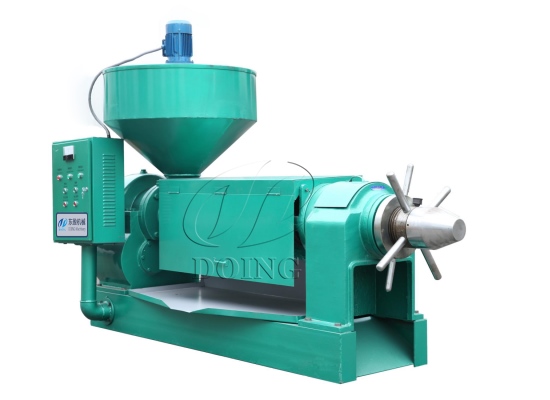

The structure of single screw oil press machine
The structure of single screw oil press machine
The single screw oil press machine consists of five parts: hopper, gearbox, press chamber, pressing screw and machine frame. The pressing screw is the key to the entire single screw oil press machine, the choice of whose raw material will affect the quality and service life of the single screw oil press machine. Therefore, when you purchase a single screw oil press machine, you should pay attention to it.
The working principle of single screw oil press machine
When the single screw oil press machine is in operation, the processed oil seeds will automatically enter the press chamber from the hopper, and the pressing screw will rotate to make the oil seeds continuously be pushed inward for pressing.
In the whole process, the oil seeds is in a moving state in press chamber of the single screw oil press machine. The pressure in the press chamber is very high. So there will be a large frictional resistance between the oil seeds and the pressing screw and the press chamber, which will cause friction between the particles of the oil seeds and cause relative movement.
Model and parameters of DOING single screw oil press machine
Model | Machine photo | Input capacity(tons/24-hour) | Oil residual rate of cake(%) | Revolving speed of pressing screw(r/min) | Power(kw) | Overall dimensions(mm) Height*Width*Depth | Weight(kg) |

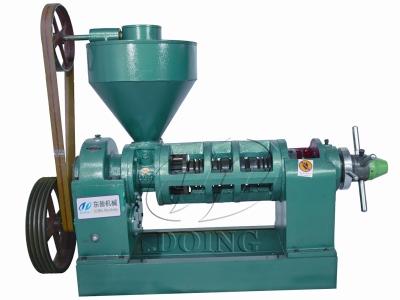

YZYX70 | ![]() | ≥1.3 | ≤7.8 | 36~42 | 4 | 1090×405×806 | 195 |

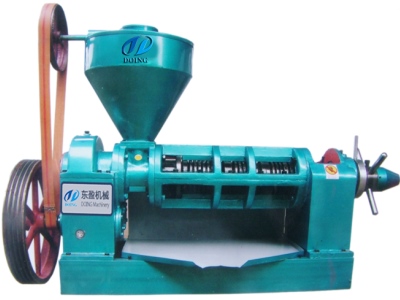

YZYX90 | ![]() | ≥3 | ≤7.8 | 32~42 | 5.5 | 1200×550×1000 | 285 |

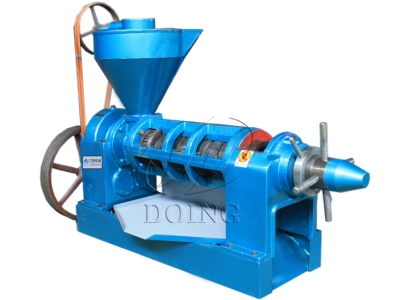

YZYX10 | ![]() | ≥3.5 | ≤7.8 | 26~36 | 7.5 | 1620×580×1165 | 570 |

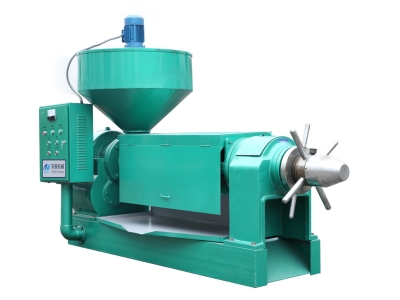

YZYX10-8 | ![]() | ≥4.5 | ≤7.8 | 32~40 | 11 | 1720×580×1185 | 590 |

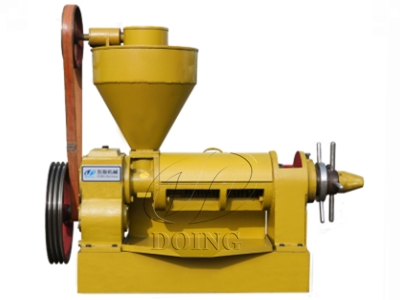

YZYX120 | ![]() | ≥6.5 | ≤7.6 | 32~40 | 15 | 1860×622×1275 | 680 |

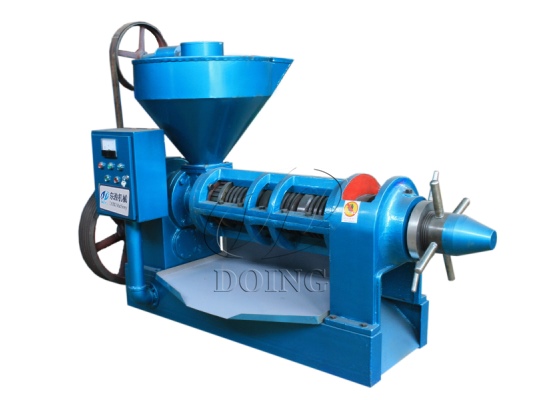

YZYX130 | ![]() | 8~10 | ≤7.6 | 28~40 | 18.5 | 1950×742×1500 | 825 |

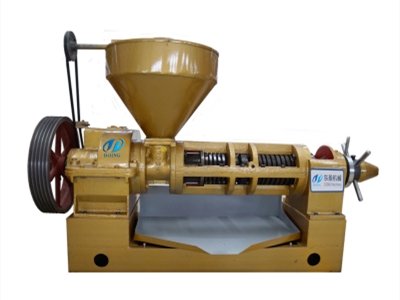

YZYX140 | ![]() | 9~11 | ≤7.6 | 28~38 | 22 | 2010×690×1430 | 806 |

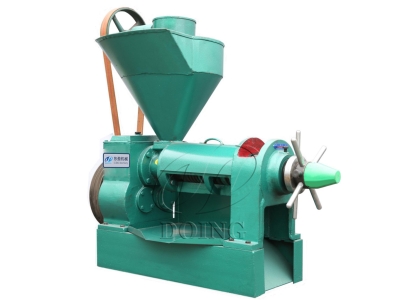

YZYX168 | ![]() | 20 | ≤7.4 | 32-38 | 30 | 2670×1000×1726 | 1820 |
The features of DOING single screw oil press machine
1. Made of high-quality steel, wear resistance, long service life and easy cleaning.
2.Advanced design and reasonable structure make the working efficiency of the single screw oil press machine greatly improved.
3. Small footprint, low cost and wide range of uses.
You can purchase one or several sets of single screw oil press machine separately, or you can combine it with a drum roaster, screw conveyor, etc. to form a simple small edible oil production line, which will save some manpower and improve the oil yield.
