Modular Palm Fruit Oil Processing Machine Solution

Henan Glory's modular palm fruit oil processing machine solution is designed for palm fruit oil processors who value flexibility, efficiency, and ease of use. Whether you're running a small palm fruit oil mill or expanding to large-scale operations, this system grows with your business, allowing you to adjust production based on demand.

Why Choose a Modular Palm Fruit Oil Processing Machine?

The modular palm fruit oil processing machine is built with modular components, making it easy to add or remove parts as needed. This can accommodate varying production capacities, from small-scale to larger industrial-scale operations. Furthermore, inspired by innovative “free installation” concepts, key sections of the modular palm fruit oil processing machine are pre-installed and containerized for easy shipping and rapid installation.

What Components Does a Modular Palm Oil Processing Plant Include?

The first is the palm fruit pretreatment part.The main palm fruit oil processing machines are one hot water tank, three palm oil steam boilers and one palm fruit debuncher. Among them, the hot water tank is used to contain hot water, providing the required hot water and heat source for the entire palm fruit oil processing process. Three palm oil steam boilers are dedicated to the sterilization of palm fruit to inactivate enzymes and prevent premature degradation of oils. The palm fruit debuncher is a drum type palm fruit debuncher that can effectively separate the palm fruits from the fruit bunches.

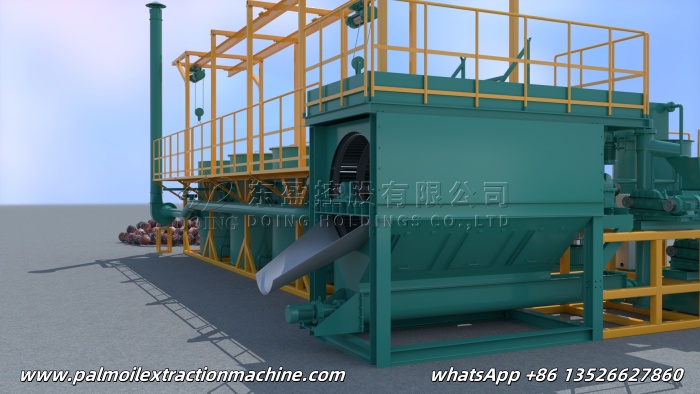

The palm fruit pretreatment part

The second is the palm fruit oil extraction part. The main palm fruit oil processing machines include a palm fruit digesting machine modified from a double-screw palm oil press machine and an ordinary double-screw palm oil press machine. Among them, the palm fruit digesting machine, which has been modified from a double-screw palm oil press machine, is of a height that meets the height of the container and can be used to digest palm fruits and release oil. This ordinary double-screw palm oil press machine has a production capacity of 1-2 tons per hour. It is made of high-quality materials, has a low residual oil rate, is not easy to clog, saves labor, and is conducive to the smoothness of palm fruit oil pressing.

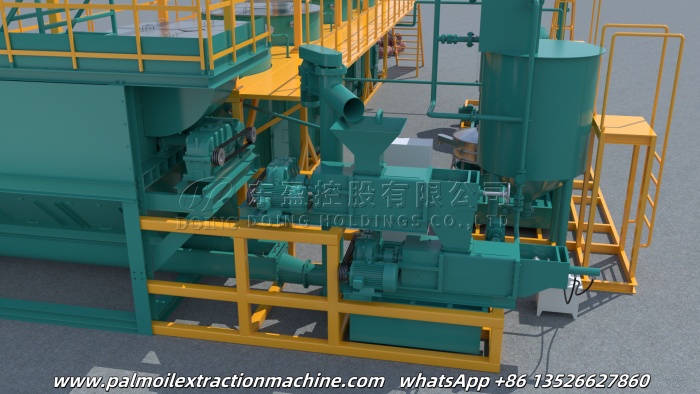

The palm fruit oil extraction part

The last is the palm oil clarification and drying part. The main palm oil processing machines includes an oil clarification tank, a rotary vibrating screen, a plate and frame filter and a vacuum drying system. Among them, the oil clarification tank, rotary vibrating screen and plate and frame filter work together to remove mud, fiber and other fine impurities in palm fruit oil. Vacuum dryers are used to reduce the moisture content in oil, thereby protecting the oil quality and extending its shelf life.

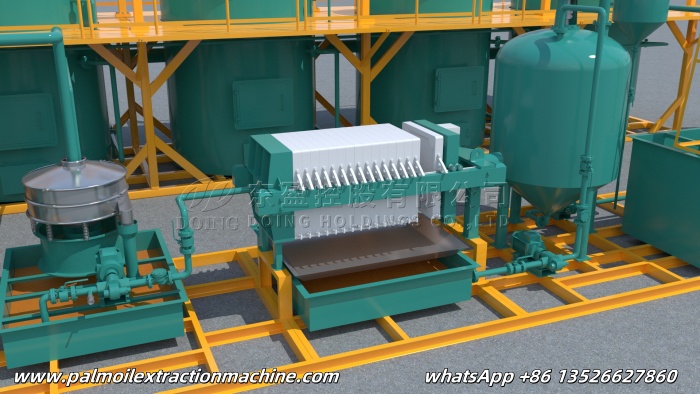

The palm oil clarification part

What are the benefits of the modular palm fruit oil processing machine?

(1) High Energy Efficiency: Modular palm fruit oil processing machines are designed for low energy consumption, improving operational efficiency and reducing costs.

(2) Customization: Each module can be tailored to the specific needs of the processor, optimizing each step of the palm oil extraction process.

(3) Ease of Maintenance: The modular palm fruit oil processing machine allows easy replacement or repair of specific components without halting the entire operation.

(4) Environmental Impact: These modular palm fruit oil processing machines can be designed with eco-friendly options, such as energy recovery from waste products (e.g., biomass energy from fiber).

Is This Solution Right for You?

This modular palm fruit oil processing machine solution is specifically designed for forward-thinking processors who aim to:

(1) Reduce initial investment and minimize onsite construction.

(2) Accelerate time-to-production with rapid installation and commissioning.

(3) Maintain operational flexibility to easily scale capacity as demand grows.

At Henan Glory, we provide more than just advanced machinery; we deliver a comprehensive partnership dedicated to your long-term success. From comprehensive training and ongoing technical support to customized system optimization, we are committed to ensuring you maximize productivity and return on investment. Want to improve your business efficiency, flexibility, and profitability? Contact us today to speak with our experts and receive a personalized solution tailored to your specific needs and goals.
