Screw press vs hydraulic oil press: Key differences & selection guide for edible oil production

When building or expanding an oil processing operation, one of the first and most consequential equipment decisions is choosing between a screw oil press and a hydraulic oil press. Both machine types can extract oil from a wide range of common oilseeds — peanuts, rapeseed, sunflower seeds, soybeans, sesame, and more — but they operate on fundamentally different principles, serve different production scales, and deliver different oil qualities. Selecting the wrong type can mean wasted capital, suboptimal extraction yields, or product quality that doesn’t match your market positioning. This oil extraction machine selection guide is designed to help you avoid those costly mismatches.

In short: screw presses excel in continuous, high-throughput production of regular edible oils, while hydraulic presses shine in low-temperature, small-batch extraction where oil purity and flavor preservation are paramount. The right choice depends on your raw materials, target oil quality, production volume, and end market. This guide breaks down the differences across five critical dimensions and provides a scenario-based selection matrix to help you make the right decision.

Working Principles

Screw Oil Press: Continuous Mechanical Extrusion

A screw oil press operates on a continuous mechanical extrusion principle. Oilseeds are fed into a hopper and enter the pressing chamber, where a rotating screw shaft progressively compresses the material. As the screw moves the material forward, the chamber volume gradually decreases, increasing pressure until oil is forced out through filter gaps in the barrel wall. The solid residue (oil cake) exits through a separate outlet, enabling truly continuous operation.

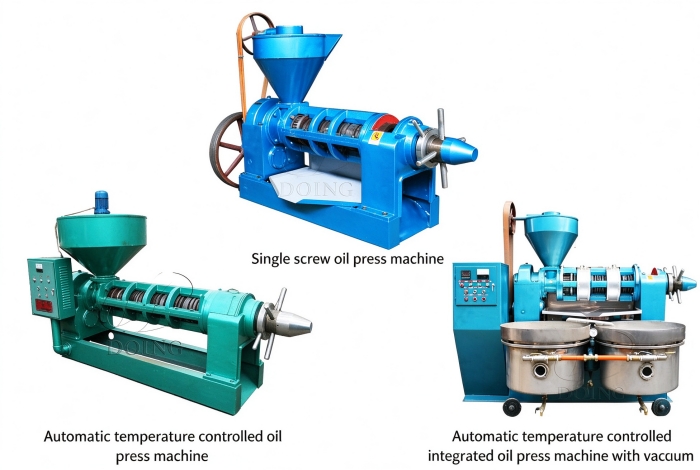

Screw oil press machine from Glory Oiltech

Screw presses come in several configuration tiers:

• Basic single-screw press — Entry-level continuous pressing, suitable for small workshops and startups.

• Temperature-controlled screw press — Adds electric heating rings for rapid, precise preheating and constant chamber temperature maintenance, improving oil yield consistency and reducing wear.

• Integrated screw press with vacuum filtration — Combines temperature-controlled pressing with vacuum filtration, eliminating the need for separate filtration equipment and delivering cleaner crude oil directly from the press.

Hydraulic Oil Press: High-Pressure Static Compression

A hydraulic oil press works through high-pressure static compression. Oilseeds (often pre-formed into cakes or wrapped in filter cloth) are placed inside a pressing chamber. A hydraulic cylinder then applies slow, powerful vertical pressure, squeezing oil out gradually. After each batch, the pressed cake is removed manually and the cycle repeats. This is inherently a batch production system, not continuous.

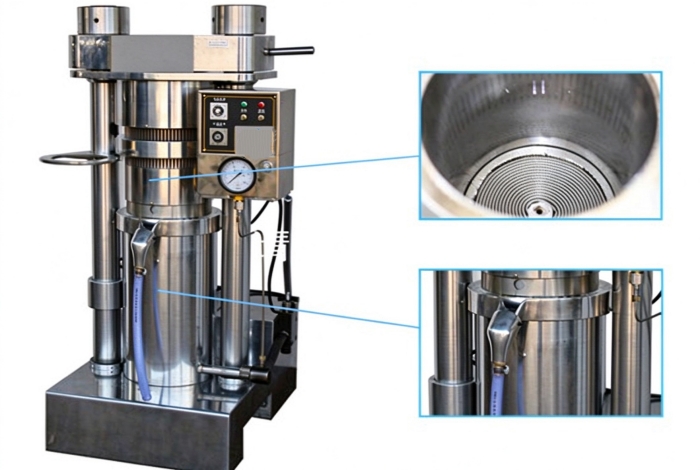

Hydraulic oil press machine from Glory Oiltech

Cold-press technology is a type of pressing process, typically implemented using hydraulic pressing equipment, with the process requirement that the oil extraction temperature does not exceed 50°C. By maintaining a low-temperature environment throughout the oil extraction process, cold-press technology can preserve the natural color, flavor, and nutritional active substances of oilseeds, and is therefore widely used in premium gourmet and health food oil markets.

Quick Comparison: Screw vs. Hydraulic Working Principles

Understanding these fundamental differences is the first step in choosing between a continuous screw press and a hydraulic oil press for your specific oilseeds and quality targets.

Performance Comparison

1. Production Capacity & Scalability

Screw oil presses are engineered for continuous operation and deliver significantly higher daily throughput. Available in configurations ranging from 1.3-40 tons per 24 hours, screw presses can handle everything from small workshop batches to large-scale commercial milling. Their continuous feed-and-discharge design means they can run for extended periods with minimal interruption.

Hydraulic oil presses operate in batch mode, which inherently limits their hourly output. Depending on the model size, typical capacities range from roughly 25 to 120 kilograms per hour. While this is sufficient for small-scale or specialty production, it cannot match the volume output of a screw press running continuously. For operators processing multiple tons of oilseeds per day, the screw press is the only practical choice.

2. Oil Yield & Residual Oil Rate

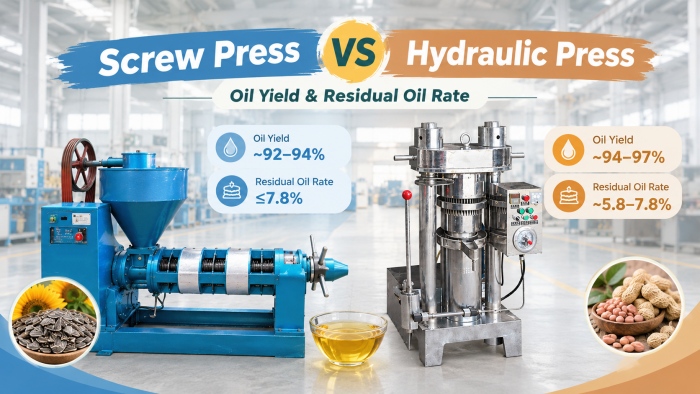

Oil yield of oil press machine

Oil yield is perhaps the most important economic metric for any pressing operation.

• Screw presses achieve residual oil rates in the cake of ≤7.8% for standard models, with larger configurations achieving ≤7.4%. Multi-stage pressing (re-pressing the cake) can further improve overall extraction efficiency. The continuous nature of screw pressing also means less raw material is wasted per unit of output.

• Hydraulic presses deliver oil yields that are 2–3 percentage points higher than conventional pressing methods. In practical terms, 100 kg of peanuts can produce 2–6 kg more oil compared to traditional equipment. The gentle, uniform pressure of hydraulic compression extracts oil thoroughly from each batch.

Both technologies are competitive in yield; the choice depends on whether you prioritize per-batch extraction quality (hydraulic) or total daily throughput (screw).

3. Oil Quality & Nutritional Retention

Oil quality depends on the entire processing chain — raw material preparation, temperature control, and post-press filtration — not just the press type itself.

• Screw presses generate friction heat. Traditional models can overheat heat-sensitive seeds. Modern temperature-controlled versions solve this with electric heating rings that keep chamber temperature stable and consistent.

• Hydraulic presses operate with almost no friction heat and can stay at ≤50°C throughout the cycle. This preserves delicate flavor compounds and nutrients, making them the preferred choice for premium sesame, walnut, and almond oils.

4. Operation Complexity & Labor Requirements

• Screw presses run with automatic continuous feeding and discharging, so labor demand during production is low. Operators mainly monitor feed rate, temperature, and cake discharge. Long-term maintenance focuses on wear parts (screw, cage, bearings).

• Hydraulic presses are simpler to learn. Modern units can complete a full cycle (load → press → unload) in about 8 minutes. One person can often manage several machines. Daily checks center on hydraulic oil level, pressure, and seals.

Bottom line: If you have limited skilled labor, the hydraulic press is easier to staff; if you need continuous high output with minimal operators, the screw press wins on labor efficiency per ton.

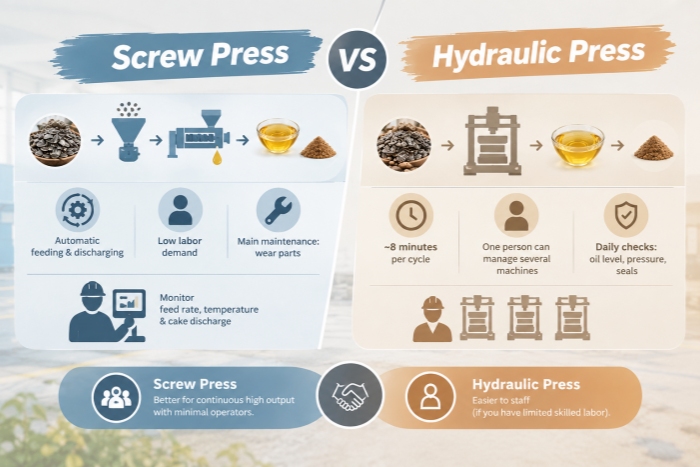

Operational requirements for oil press machine

5. Energy Consumption & Operating Costs

• Screw presses use motors from 4 kW to 30 kW. Adding temperature control and vacuum filtration increases power draw, but the higher daily throughput usually lowers energy cost per ton of oil.

• Hydraulic presses are lighter on electricity (typically 1.1–2.2 kW) and can consume roughly 40% less power than a comparable-output screw press. However, because their hourly output is lower, total energy cost per ton of finished oil can actually be higher once daily volume exceeds 2–3 tons.

Application-Based Selection Guide

Choosing between a screw press and a hydraulic press ultimately comes down to matching your specific production scenario with the right technology. Use the oil extraction machine selection matrix below to narrow your options quickly.

Scenario Selection Matrix

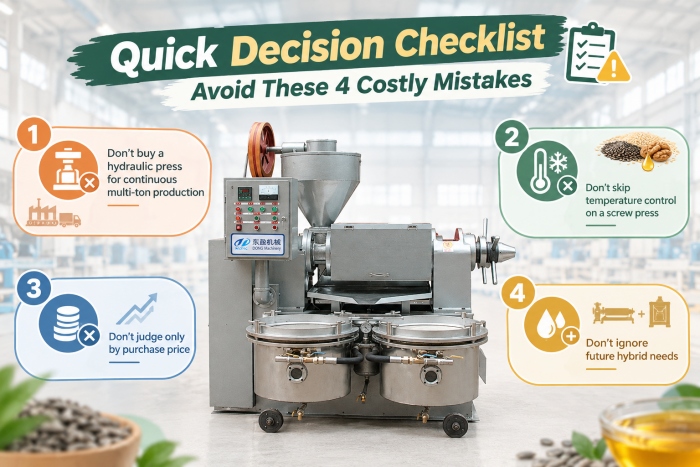

Quick Decision Checklist – Avoid These 4 Costly Mistakes

Automatic oil press with filter

1. Don't buy a hydraulic press for continuous multi-ton daily production — it will become a bottleneck within the first season.

2. Don't skip temperature control on a screw press if you process sesame, walnut, or other heat-sensitive seeds. Residual oil and flavor both suffer.

3. Don't judge only by purchase price. A 1–2% higher residual oil rate can wipe out the "cheaper machine" advantage in less than a year.

4. Don't ignore future hybrid needs. Many successful mills run a screw press for volume crops and keep a hydraulic / cold press oil press for high-value specialty oils. Plan foundation and power capacity accordingly from day one.

This checklist alone often saves buyers from the two most expensive mistakes: under-capacity and wrong temperature strategy.

FAQ

Choose the Right Oil Press for Your Business with Glory Oiltech

Both screw and hydraulic oil presses are proven, reliable technologies — each optimized for different production realities. Screw presses deliver continuous throughput and versatility across oilseed types, making them the backbone of commercial edible oil mills. Hydraulic presses offer gentle, low-temperature extraction that produces premium-quality oil for specialty markets. The smartest investment aligns your equipment choice with your actual raw materials, production volume, and target market.

At Glory Oiltech (Henan Glory), we manufacture and supply both screw press and hydraulic press solutions, along with integrated systems that combine temperature control and vacuum filtration in a single unit. Our equipment has been exported to over 20 countries and is backed by comprehensive technical support and after-sales service. Whether you need a compact unit for a small workshop or a high-capacity system for commercial milling, Glory Oiltech can design a configuration that matches your production goals and budget.

Contact us today to discuss your specific requirements and receive a customized equipment configuration plan tailored to your operation.
